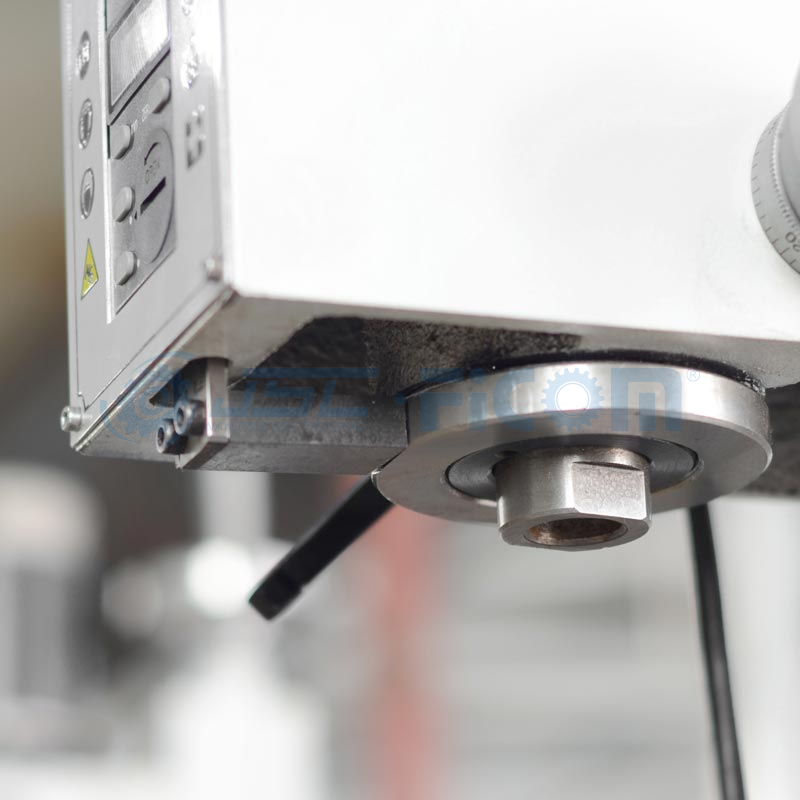

· High concentricity precision due to taper roller bearings less than 0.015mm measured in the spindle sleeve
· Stable and precise dovetail control adjustable via V-ledges on all 3 axes
· Clean cut surface of milled work by individually clampable cheeks

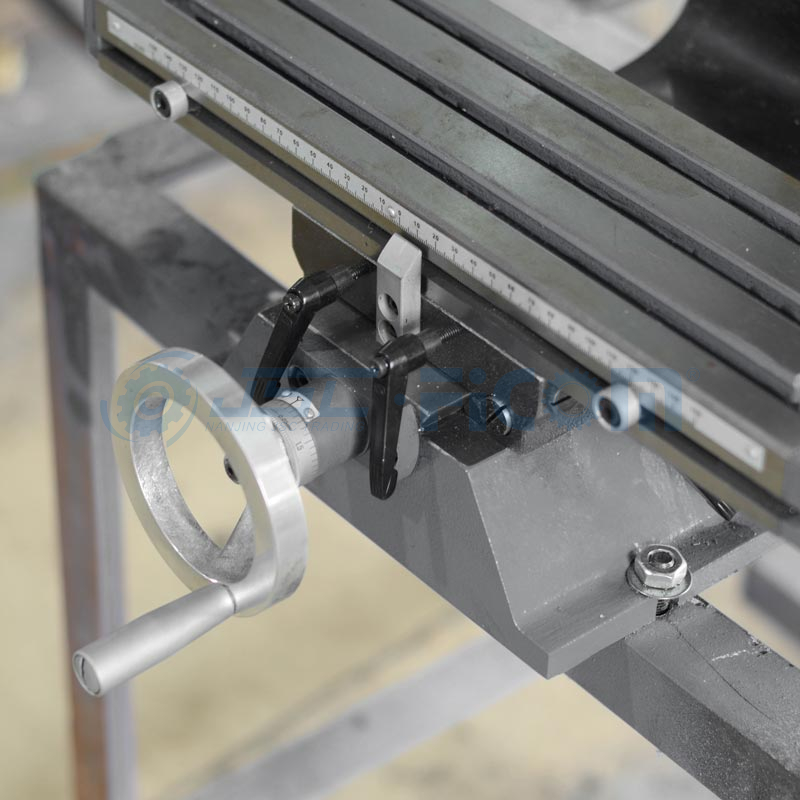

· Solid, precisely machined cross table with T-slots and coolant gutter
· Height-adjustable screening grid

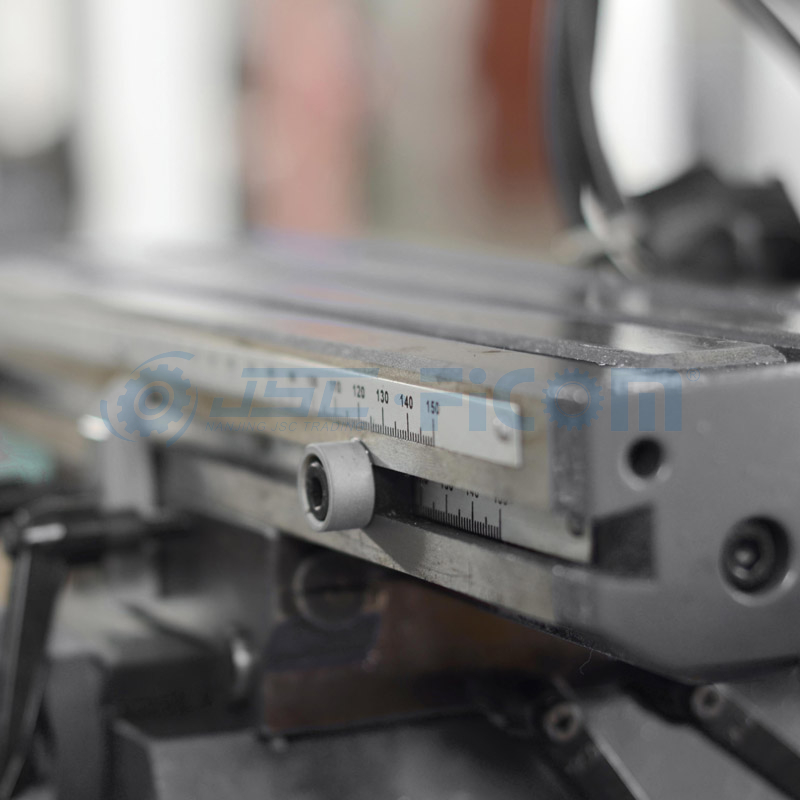

· All travels are readable from scales
· Produced according to toolmaker's precision with test certificate
· Price-eff

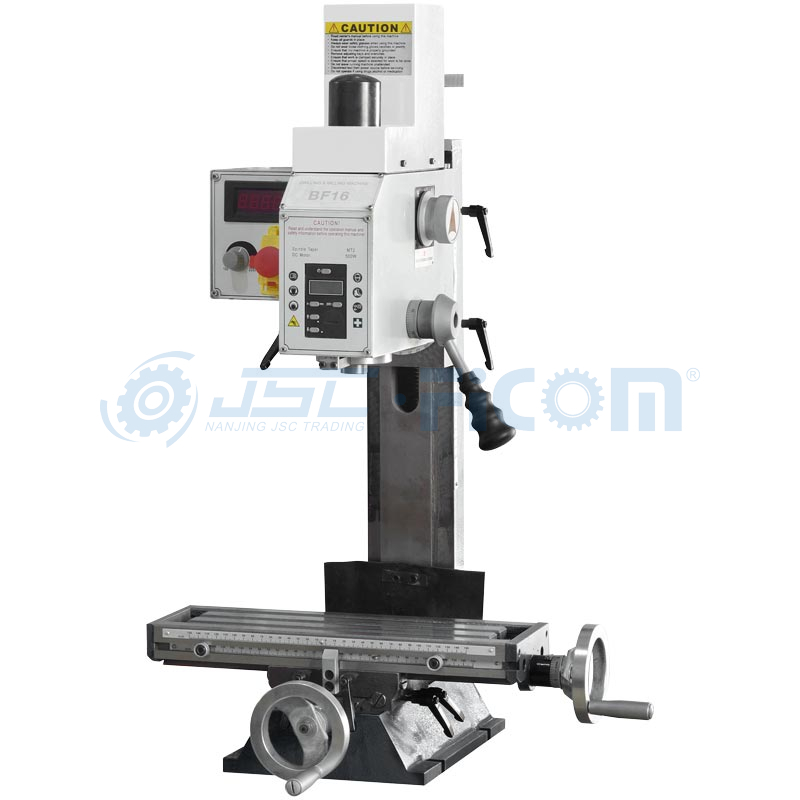

| Model No. | Unit | BF16 |
CAPACITY | ||
drilling capacity(max.) | mm | Ø16(0.63") |
milling capacity cutter head(max.) | mm | Ø50(1.97") |
milling capacity end mill cutter(max.) | mm | Ø16(0.63") |
SPINDLE HOLDING FIXTURE | ||
spindle taper | MT2/M10 | |
sleeve diameter | mm | Ø60(2.36") |
sleeve travel | mm | 50(1.97") |
distance spindle-column | mm | 188(7.40") |
DRILL-MILL HEAD | ||
spindle inclined angle | ° | ±50 |
spindle speed | rpm | L: 100-1500 H: 200-3000 |
CROSS TABLE | ||
tabel(L×W) | mm | 400×120(15.75"×4.72") |
Y-axis travel | mm | 160(6.30") |
X-axis travel | mm | 220(8.66") |
Z-axis travel | mm | 210(8.28") |
T-slot size/distance/number | mm | 10/35/3(0.39"/1.38"/0.12") |
distance spindle-cross table(max.) | mm | 280(11.02") |
ELECTRIC SUPPLY | ||
motor | W | 500 |
DIMENSIONS AND WEIGHT | ||
size(L×W×H) | mm | 510×470×745 |
packing size(L×W×H) | mm | 525×485×760 |
N.W./G.W. | kg | 59/75 |
Draw bar | Morse taper MT2/B16-M10 | ||
Morse collet chuck MT2/M10(5pcs/set) | End mill cutter kit HSS 12pcs/set | Keyless chuck 1-13mm/B16 | Milling chuck kit Q24-16(8pcs/set) |
Machine vice QG100 | Face milling cutter ø63/MT2 | Stand & chip tray |
