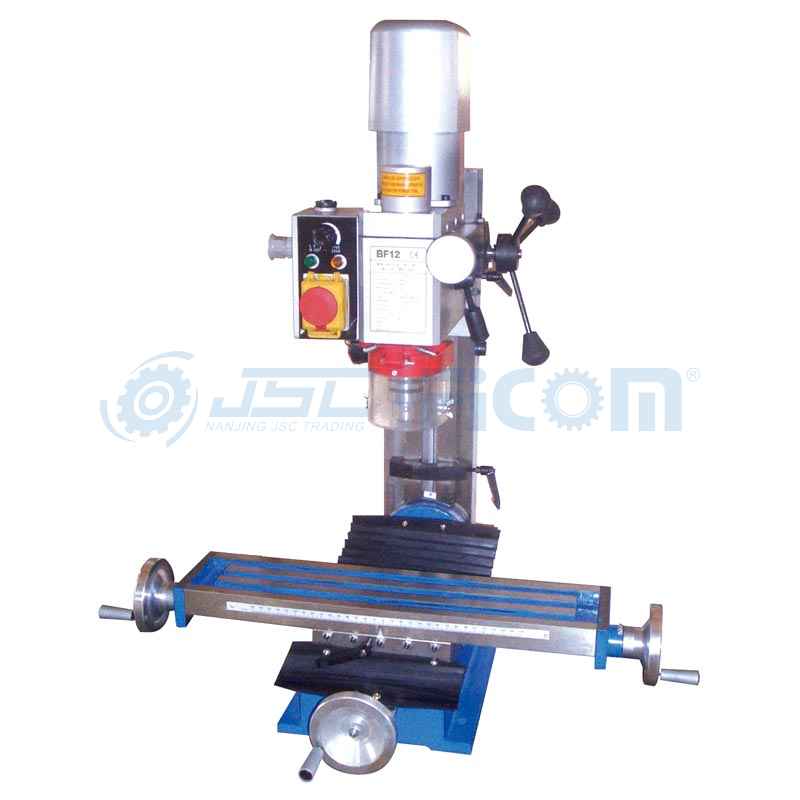

BF12 Drilling & Milling Machine

· Variable speed
· DC motor
· Milling, drilling, boring, reaming
· Head swivel ±45º of perpendicular
· Spindle micro feed
· Positive spindle lock
· Adjustable gibs on table
· Accurate position, strong rigidity, strong cutting power

Quantity:
  • BF12
  • FICOM
Overview


BF12


Technical Parameters
Model No.

Unit

BF 12

drilling capacity

mm

16(0.63")

max. face mill capacity

mm

30(1.18")

spindle stroke

mm

180(7.07")

longitudinal travel

mm

250/300(9.84"/11.81")

cross travel

mm

100/130(3.94"/5.12")

spindle rotary angle

º

-45~+45

working table size

mm

410/460×112(16.14"/18.11"×4.41")

motor power

W

550

max. distance spindle to table

mm

220(8.66")

spindle taper


MT3

spindle speed

rpm

50~2500

N.W./G.W.

kg

62/80

packing size

mm

650×630×820
