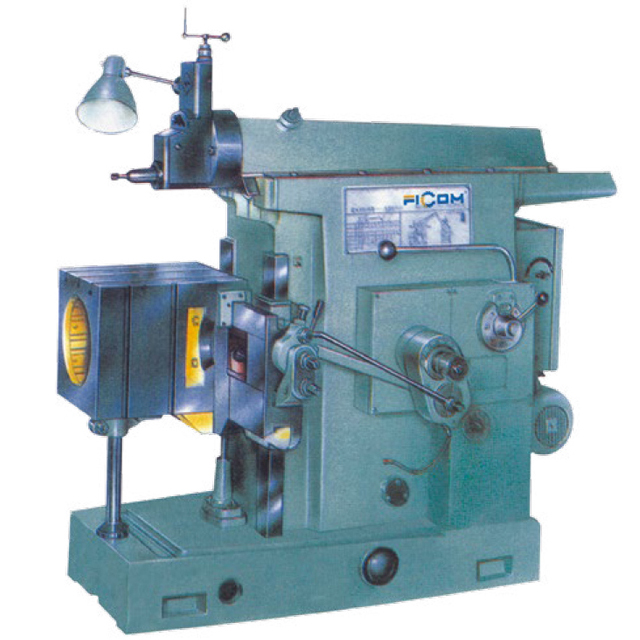

B635A
FICOM
· This machine is designed for shaping and formed surfaces. If used for shaping surfaces, T-slots and dovetail slots, etc.on narrow and long workpieces, the machine will obtain much higher production, With the equipment of a special vice or a dividing head, the machine can be used for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.
| Model No. | Unit | B635A | |
| max. shaping length | mm | 350 | |
| max. distance,from lower edge of ram to table | mm | 330 | |
| max. travel of table | horizontal | mm | 400 |
| vertiacl | mm | 270 | |
| max. length between cutter and front bed end | mm | 500 | |
| max. ram travel | mm | 170 | |
| max. swivel angle of table | without vice | ° | ±90 |
| with vice | ° | ±55 | |
| max. vertical travel of tool head | mm | 110 | |
| frequency of ram strokes | 32.50.80.125.times/min | ||
| pawl riding over 1 ratchet tooth | horizontal | mm | 0.18 |
| vertiacl | mm | 0.21 | |
| pawl riding over 4 ratchet tooth | horizontal | mm | 0.73 |
| vertiacl | mm | 0.84 | |
| motor | Kw | 1.5Kw 1400r/min | |
| vice measurements (width×depth×max.opening) | mm | 180×55×150 | |
| overall dimensions(L×W×H) | mm | 1390×860×1455 | |
| packing size(L×W×H) | mm | 1580×980×1380 | |
| N.W./G.W. | Kg | 1000/1200 | |
