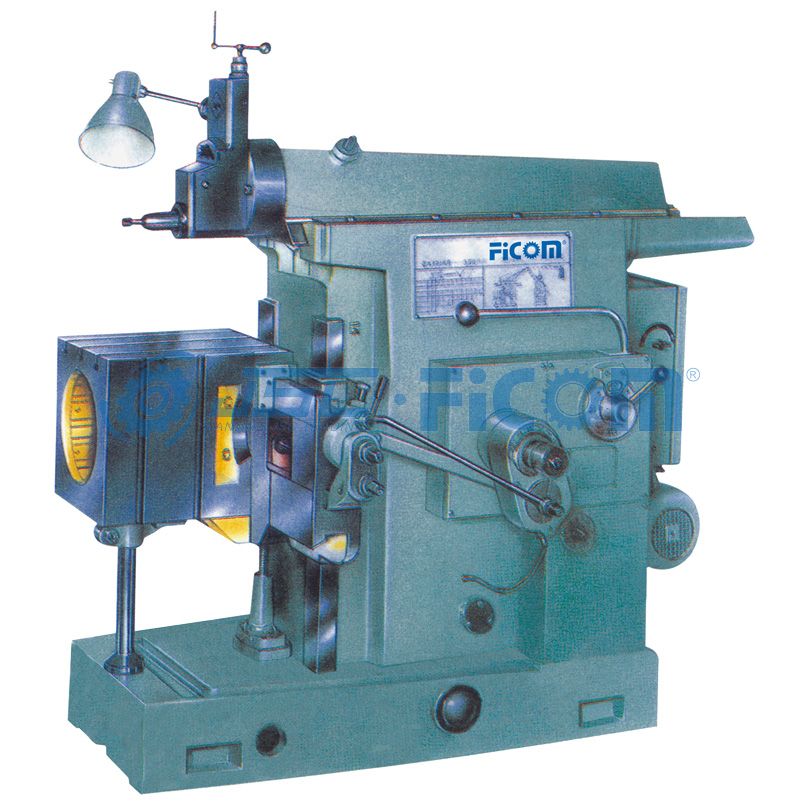

B635A Shaping Machine

Availability:
  • B635A

  • FICOM

Overview

· This machine is designed for shaping and formed surfaces. If used for shaping surfaces, T-slots and dovetail slots, etc.on narrow and long workpieces, the machine will obtain much higher production, With the equipment of a special vice or a dividing head, the machine can be used for processing the end surfaces and slots with equal distance on cylindrical or rectangular workpieces.




B635A


Technical Parameters
Model No. Unit B635A
max. shaping length mm 350
max. distance,from lower edge of ram to table mm 330
max. travel of table horizontal mm 400
vertiacl mm 270
max. length between cutter and front bed end mm 500
max. ram travel mm 170
max. swivel angle of table without vice ° ±90
with vice ° ±55
max. vertical travel of tool head mm 110
frequency of ram strokes
32.50.80.125.times/min
pawl riding over 1 ratchet tooth horizontal mm 0.18
vertiacl mm 0.21
pawl riding over 4 ratchet tooth horizontal mm 0.73
vertiacl mm 0.84
motor Kw 1.5Kw  1400r/min
vice measurements (width×depth×max.opening) mm 180×55×150
overall dimensions(L×W×H) mm 1390×860×1455
packing size(L×W×H) mm 1580×980×1380
N.W./G.W. Kg 1000/1200
