| Quantity: | |
|---|---|

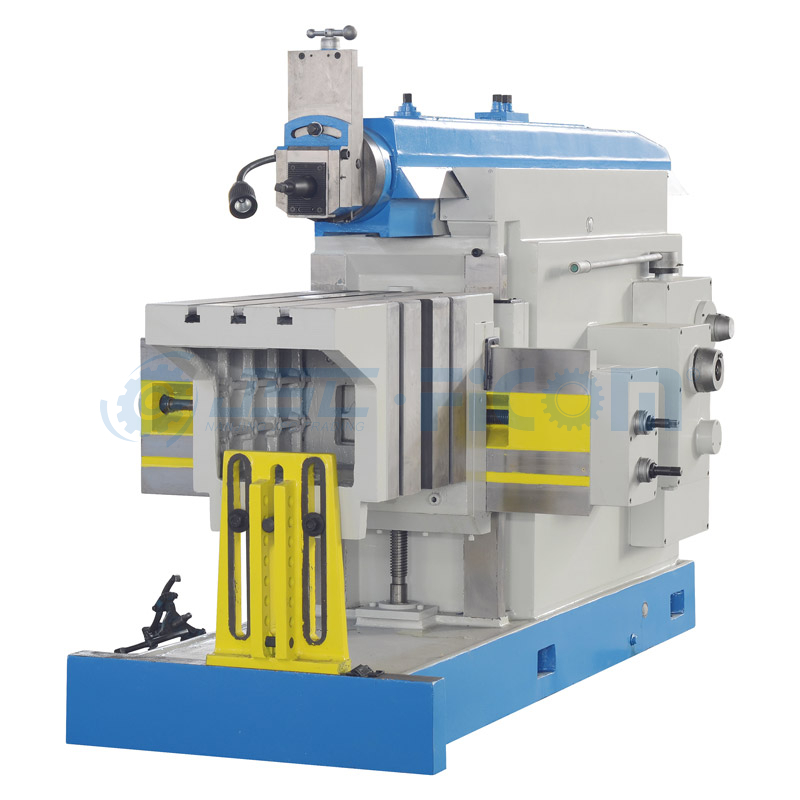

| Model No. | B6070 | B6090 |
| max.shaping length | 700mm | 900mm |
| max.range of the horizontal movement of the table | 600mm | 600mm |
| max.distance between the ram bottom and table | 350mm | 450mm |
| max. length of the vertical movement of table | 300mm | 400mm |
| dimensions of table top:length×width | 700×400mm | 900×400mm |
| max.stroke length of the toolhead | 150mm | 150mm |
| max.swivel angle of the toolhead | + -60° | + -60° |
| max.section of tool(W×H) | 22×30mm | 22×30mm |
| number of ram reciprocation per minute | 14-80No/min | 14-80No/min |
| range of table feed: horizontal vertical | 0.2-2.5/0.08-1mm/recip | 0.2-2.5/0.08-1mm/recip |
| the table range of horizontal feed of ram reciprocation per minute | 0.25-1.8mm | 0.25-1.8mm |
| horizontal feed with the table | (stepless) | (stepless) |
| max loading weight on worktable | 200Kg | 200Kg |
| speed of rapid travel of table: horizontal vertical | 1.57/0.35m/min | 1.57/0.35m/min |
| width of the T-slot for center positioning | 18mm | 18mm |
| power of the main motor | 4Kw | 4Kw |
| power of the motor for rapid travel of table | 0.75Kw | 0.75Kw |
| N.W. (approx) | 2700Kg | 2700Kg |
| dimensions of machine tool (Length×Width×High) | 2670×1350×1500mm | 2670×1350×1600mm |
| flatness of machined surface on tested workpiece | 0.025mm | 0.025mm |
| parallelism of machined surface on tested workpiece to base | 0.03mm | 0.03mm |
parallelism of machined surface on the side tp that on the other side on tested workpiece | 0.05mm | 0.05mm |
| verticality of machined side surface on the side of tested workpiece against base | 0.02mm | 0.02mm |
| surface roughness | 6.3 | 6.3 |
