B5020D/B5032D/B5040D
FICOM

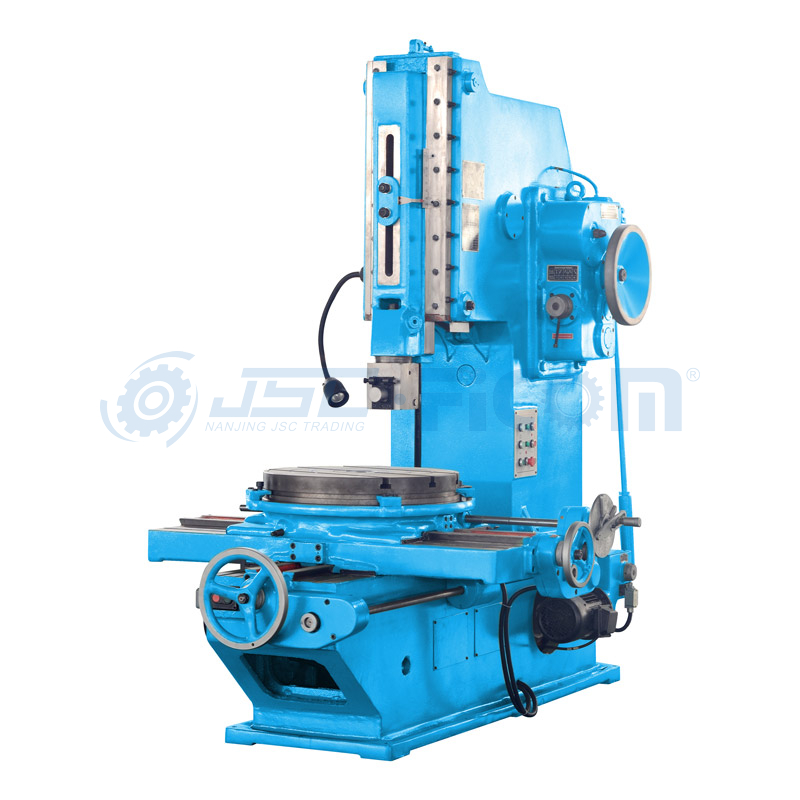

· Used to machine various plane, surface and key of workpiece. It is suitable for small workshop.

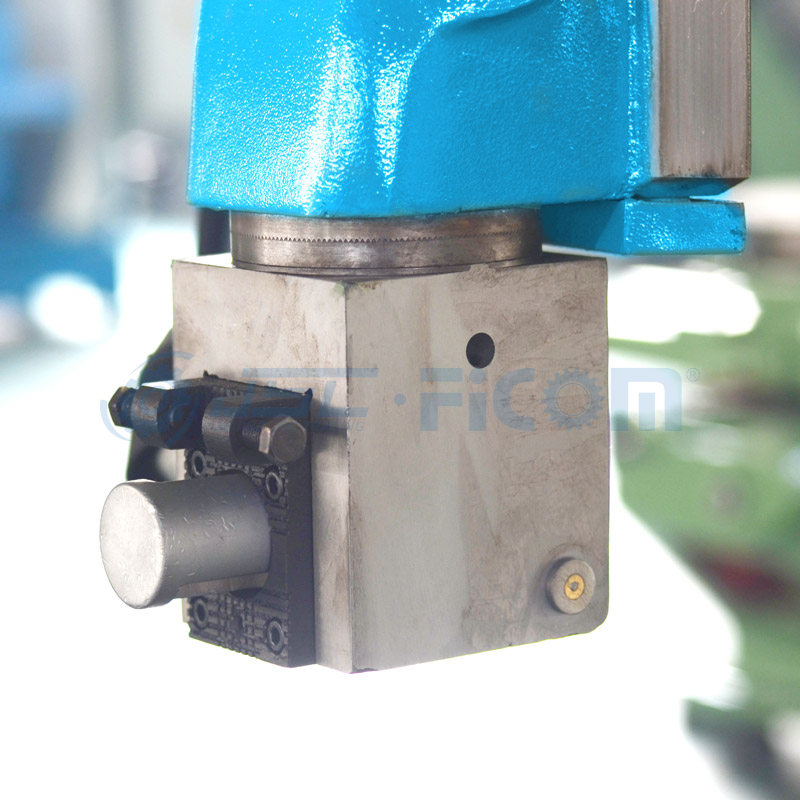

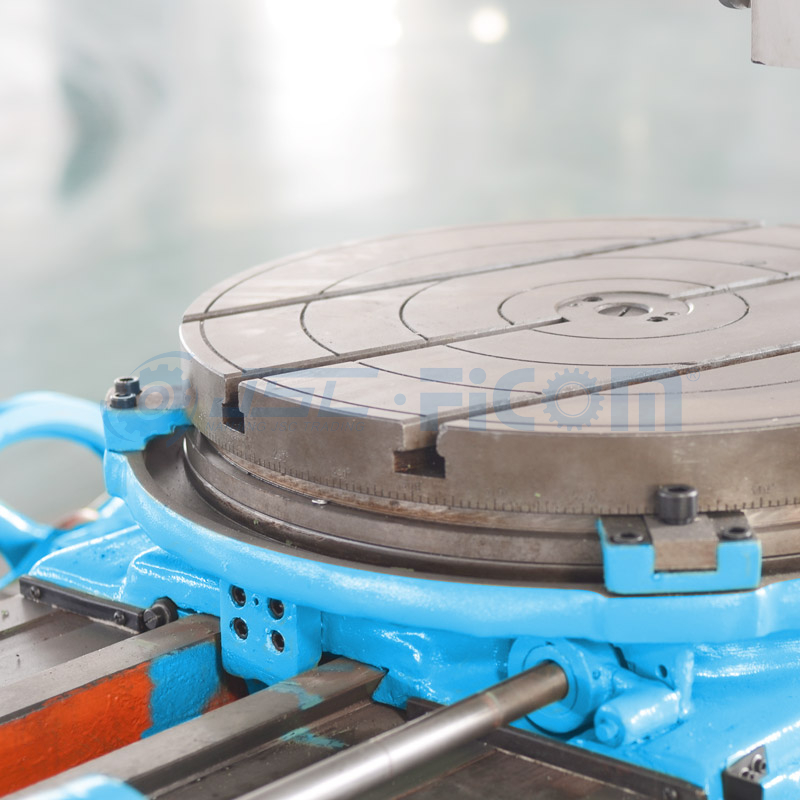

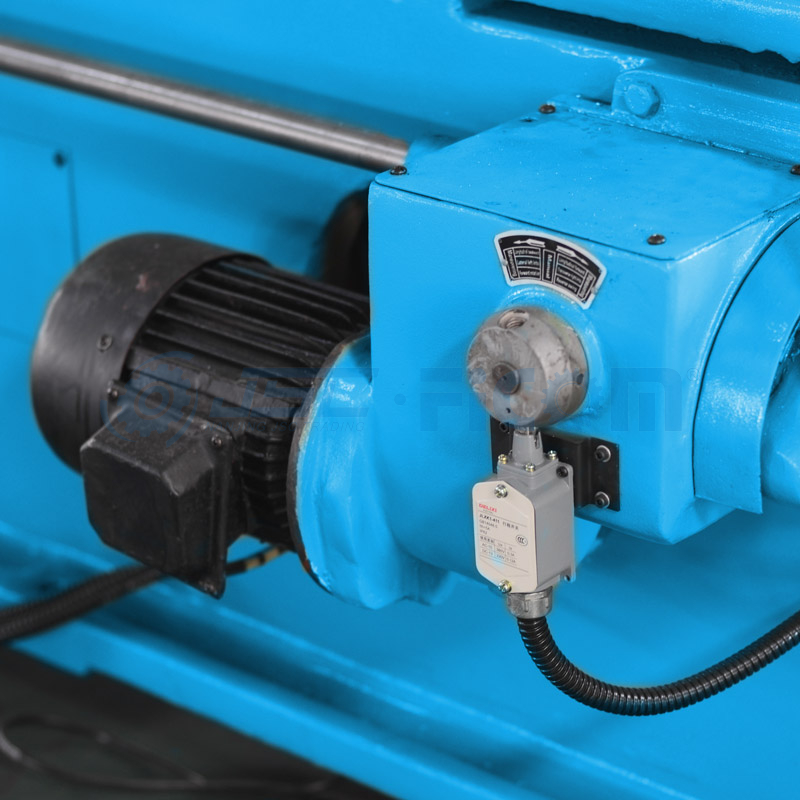

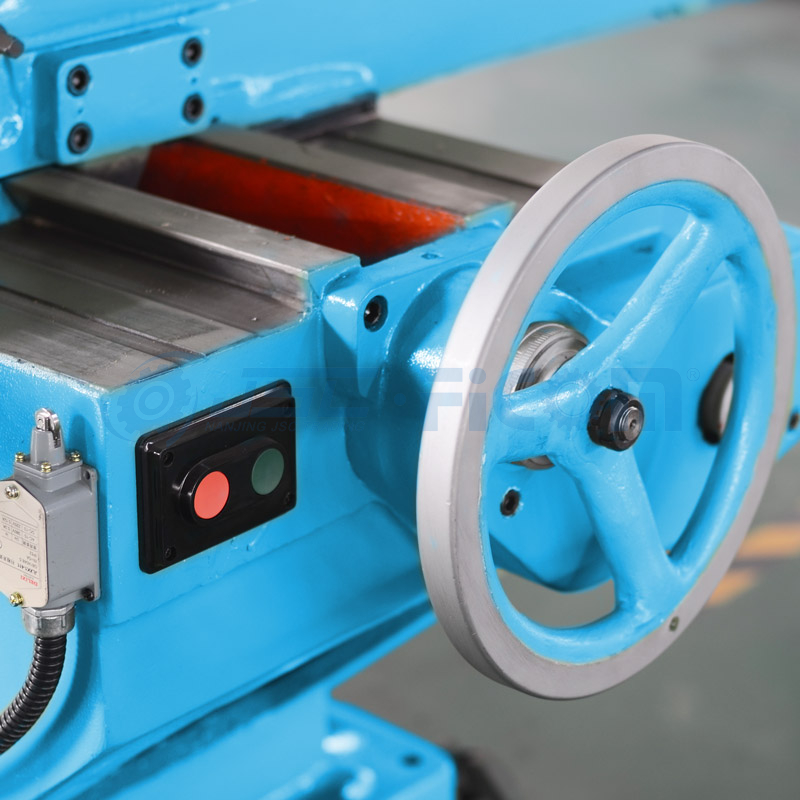

· Machine start and stop is control by a clutch and reciprocation of ram is achieved by a crank connecting link. An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on table. And there is a rapid motion device for vertical, horizontal and rotary motion of the table which is equipped with an indexing gear for rotary motion.
| Model No. | Unit | B5020D | B5032D | B5040D |
| max slotting length | mm | 200 | 320 | 400 |
| number of ram reciprocation per minute | no./min | 32,50,80,125 | 20,32,50,80 | 20,32,50,80 |
| inclination of ram | ° | 0-8 | 0-8 | 0-8 |
| dia of worktable | mm | 460 | 630 | 630 |
| adjusting vertical distance of slide block | mm | 200 | 315 | 315 |
| distance from tool holder surface to column front | mm | 480 | 600 | 600 |
| distance from worktable surface to underside of slide rack | mm | 320 | 455 | 615 |
| max longitudinal travel of worktable | mm | 420 | 560 | 560 |
| max transverse travel of worktable | mm | 420 | 535 | 535 |
| max rotary angle of worktable | ° | 360 | 360 | 360 |
| feed range of worktable in longitudinal and transverse direction | mm | 0.054-1.24 | 0.054-1.24 | 0.054-1.24 |
| rotary feed range of worktable | ° | 0.035-0.805 | 0.035-0.805 | 0.035-0.805 |
| max size of slotting tool(WxH) | mm | 25×40 | 25×40 | 25×40 |
| max slotting force | Kn | 5 | 8 | 8 |
| max loading weight on worktable | Kg | 400 | 500 | 500 |
| T-slot width in center of worktable | mm | 18 | 18 | 18 |
| main motor power | Kw | 3 | 3 | 3 |
| rapid transverse motor power | Kw | 0.75 | 0.75 | 0.75 |
| N.W. | Kg | 2200 | 2500 | 2900 |
| packing size(L×W×H) | mm | 1720×1220×1885 | 1930×1365×2270 | 1970×1365×2310 |
