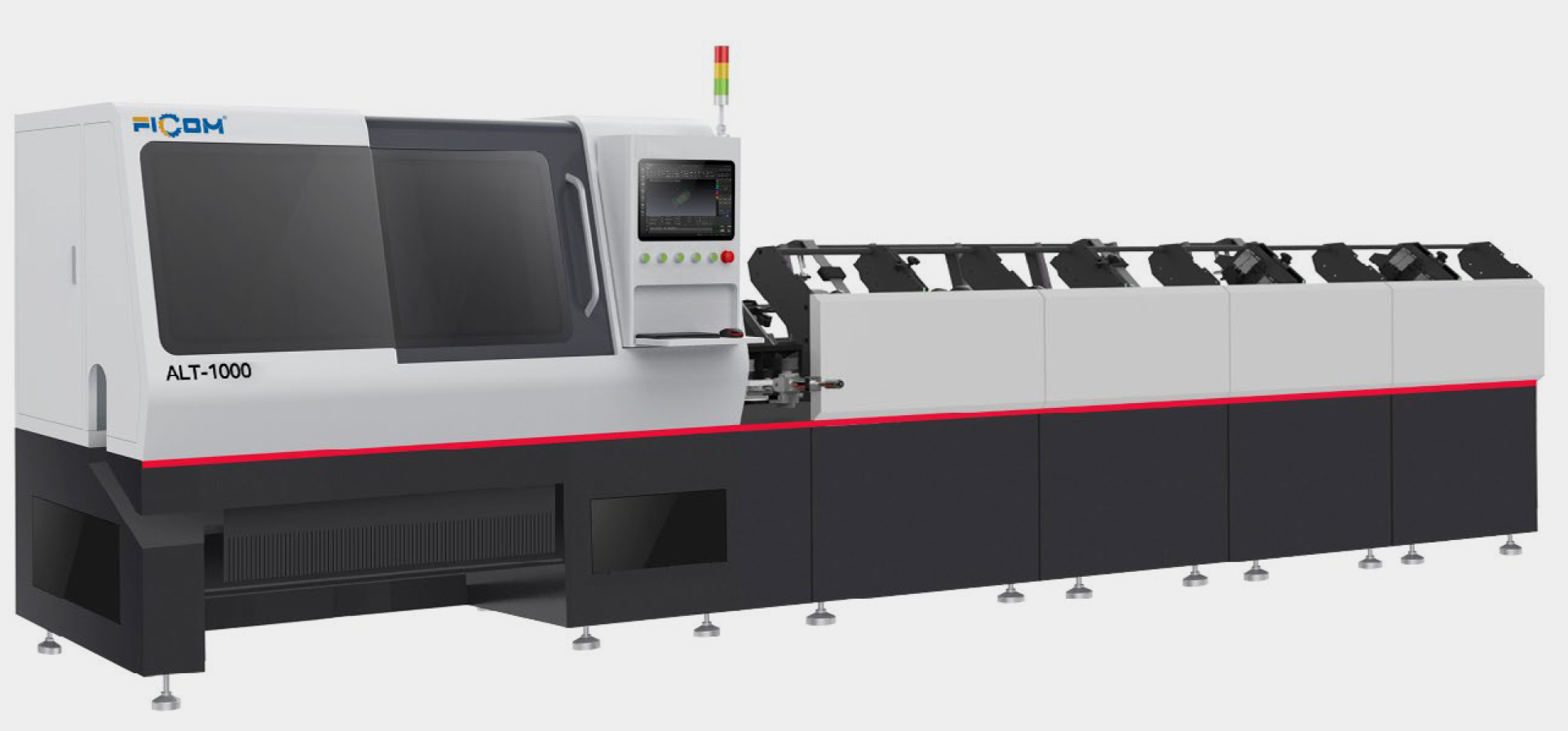

Automatic Multi-Function Laser Tube Cutting Machine for Advanced Profile Processing
The Automatic Multi-Function Laser Tube Cutting Machine is engineered for demanding industrial applications where precision, material variety, and automation are critical. This cutting solution supports round, square, rectangular, oval, and even special-shaped tubes with complex contours. Its fully automated loading system, combined with servo-controlled feeding and intelligent nesting software, enables high throughput without manual intervention—making it ideal for furniture manufacturing, sports equipment production, and automotive frame structures.
This equipment supports continuous, multi-batch tube cutting with high repeatability. It integrates automatic centering, clamping, and real-time deviation compensation, ensuring edge quality and dimensional stability regardless of material complexity or length.
High-Speed Rotary Chuck System for Seamless Tube Handling
At the core of this machine is its dual-pneumatic rotary chuck system, which clamps and rotates the tube during laser cutting. The chucks are self-centering and can automatically adjust to varying diameters (typically from Ø20 mm to Ø220 mm), ensuring minimal repositioning error and stable axial alignment.
The system is powered by a servo drive, allowing for smooth acceleration and deceleration during contour changes. This is essential when processing parts with frequent internal cuts, such as vent holes, brackets, or complex joints in chassis design.
Integrated Multi-Axis Cutting Head for Bevels and Slots
To meet the rising demand for multi-angled cuts and bevel preparation, the machine is often equipped with a five-axis cutting head. This enables it to tilt and rotate during cutting, allowing for high-precision V-grooves, chamfers, and slotting in a single setup. It supports ±45° bevel cutting, reducing the need for post-processing such as milling or grinding.
The motion path of the cutting head is guided by high-precision linear guides and monitored in real-time by CNC software that adjusts cutting parameters based on material feedback.
Automatic Loading, Sorting, and Nesting Capabilities
Designed for automation-intensive environments, this machine features a bundle-loading mechanism capable of feeding tubes up to 6 meters in length. It detects and aligns each tube individually, reducing human error and labor costs.
Advanced nesting algorithms optimize material usage by arranging multiple parts within a single tube with minimal waste. After cutting, finished parts are sorted and discharged automatically into bins based on batch numbers or part dimensions.
Precision Cutting with Intelligent Monitoring
Equipped with fiber laser sources from 1kW to 6kW, the system provides consistent edge quality in stainless steel, carbon steel, aluminum alloy, and galvanized tubing. Its smart sensors monitor focus position, gas pressure, cutting speed, and material feedback—automatically adjusting laser output for varying tube thicknesses or coatings.
This guarantees stable cutting even in materials prone to deformation or warping, such as thin-wall aluminum or heat-sensitive alloys.
Applications in Lightweight Structural Fabrication
This laser tube cutting system is widely used in the fabrication of bicycle frames, gym equipment, modular furniture, and vehicle subframes. The ability to process complex slots, cutouts, and angled notches in a single pass dramatically shortens the manufacturing cycle and improves structural design flexibility.
Safety Features and Maintenance Accessibility
The entire cutting process is enclosed in a protective structure with observation windows and fume extraction systems. Safety interlocks prevent operation during maintenance, while modular design allows for easy replacement of wear components such as lenses, nozzles, and bearings.
The software also provides predictive maintenance alerts, helping avoid unexpected downtime.
FAQs:
How does the automatic loading system improve productivity in laser tube cutting?
The automatic loading system eliminates manual tube feeding, enabling uninterrupted batch production. It detects tube orientation, centers it precisely, and queues the next workpiece automatically, reducing idle time and operator fatigue.
Can this machine cut different tube shapes without manual adjustment?
Yes, it features intelligent auto-clamping and recognition systems that adapt to various profiles—round, square, oval, and custom shapes—without the need to manually change fixtures or tools.
Does the system support multi-angle bevel cutting for welding preparation?
Absolutely. With a 5-axis cutting head, it can perform precise bevel cuts up to ±45°, which is crucial for joints requiring full penetration welds or tight structural fitment.
What is the typical wall thickness range it can handle?
Depending on the laser power, the machine can cut wall thicknesses from 0.8 mm to 10 mm in mild steel and slightly less in aluminum and stainless steel, with excellent edge finish and accuracy.
Is this machine compatible with MES or ERP systems for production tracking?
Yes, it supports industrial communication protocols like OPC-UA and Modbus, allowing full integration with MES/ERP for real-time production data, quality reports, and job scheduling.
