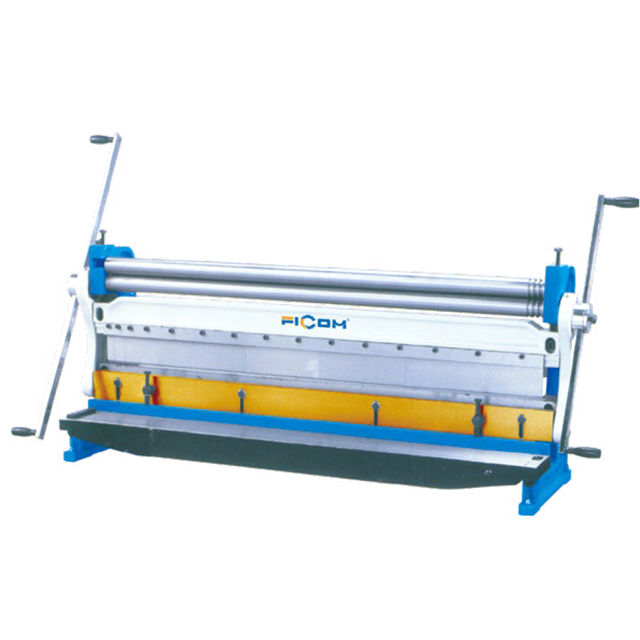

3-in-1 Machine Sheet Metal Shear Brake Roll

3-in-1 Machine for Integrated Sheet Metal Shearing, Bending, and Rolling

The 3-in-1 machine is a compact and highly versatile solution designed for sheet metal workshops requiring multiple forming processes within limited space. By integrating shearing, bending, and rolling functions into a single unit, this machine significantly reduces equipment investment while maintaining operational flexibility. It is particularly suitable for small to medium fabrication environments where efficiency and space optimization are critical.

The machine structure combines a shear blade system, a segmented bending unit, and a slip roll assembly, allowing operators to perform sequential operations without transferring materials between different machines. This integrated workflow improves productivity and minimizes handling errors.

3-in-1 Machine Shearing Unit for Clean and Accurate Cutting

The shearing section of the 3-in-1 machine is equipped with hardened and ground blades to ensure precise cutting performance. The blade design allows for smooth shearing of thin to medium gauge sheet metal with minimal burr formation.

Technical advantages include:

· High cutting accuracy with straight edge consistency

· Reduced deformation during cutting

· Durable blade life due to hardened materials

· Efficient operation for repetitive cutting tasks

This function is essential for preparing raw sheets before bending or rolling, ensuring clean edges for subsequent processes.

3-in-1 Machine Bending Function with Segmented Fingers for Box Forming

The bending unit features a segmented finger design, enabling flexible forming of complex shapes such as boxes and pans. Each segment can be adjusted or removed to accommodate different bending geometries, allowing the creation of enclosed structures without interference.

Key features include:

· Adjustable finger segments for customized bending setups

· Accurate angle control for repeatable results

· Capability to form multi-side components

· Reduced need for secondary machining

This makes the machine highly effective for producing electrical enclosures, duct components, and custom sheet metal parts.

3-in-1 Machine Rolling System for Cylindrical and Curved Parts

The rear slip roll system allows for efficient rolling of sheet metal into cylindrical or curved shapes. The rollers are designed to provide consistent pressure and smooth material flow during operation.

Performance benefits include:

· Uniform rolling radius for consistent curvature

· Easy adjustment for different sheet thicknesses

· Quick release mechanism for finished parts

· Capability to produce tubes and curved panels

This rolling function expands the machine’s application range, making it suitable for both flat and curved metal fabrication.

3-in-1 Machine Space-Saving Design for Workshop Efficiency

One of the most significant advantages of the 3-in-1 machine is its compact footprint. By combining three essential functions into one unit, it eliminates the need for separate machines, saving valuable workshop space.

Operational benefits include:

· Reduced equipment investment cost

· Lower maintenance requirements

· Simplified workflow and material handling

· Ideal for small workshops and mobile fabrication units

This design is especially beneficial in environments where space and budget constraints are key considerations.

3-in-1 Machine Material Compatibility and Durability Features

The machine is suitable for processing a variety of materials, including mild steel, aluminum, and galvanized sheets. Its robust construction ensures durability under continuous operation.

Additional features may include:

· Reinforced steel frame for stability

· Corrosion-resistant surface treatment

· Hardened rollers and blades for long service life

· Manual control system for reliable operation

These characteristics ensure consistent performance and long-term reliability in different working conditions.

3-in-1 Machine Application in Light Fabrication and HVAC Production

The 3-in-1 machine is widely used in industries requiring flexible sheet metal processing. Its multifunctional capability allows manufacturers to handle diverse production tasks efficiently.

Typical applications include:

· HVAC duct fabrication

· Sheet metal enclosure production

· Roofing and cladding components

· Maintenance and repair workshops

The ability to perform multiple operations in one setup reduces production time and improves overall efficiency.

FAQ (People Also Ask)

What thickness can a 3-in-1 machine handle?
The capacity depends on the model, but most machines are designed for light to medium gauge sheets, typically used in workshop-level fabrication.

Is a 3-in-1 machine suitable for industrial production?
It is ideal for small batch production and workshops. For heavy industrial use, dedicated machines may offer higher capacity and automation.

How do you maintain a 3-in-1 sheet metal machine?
Regular lubrication, blade inspection, and roller alignment checks are essential to ensure consistent performance and extend machine lifespan.

Can the rolling and bending functions be used simultaneously?
No, operations are performed sequentially, but the integrated design allows quick switching between functions without moving the material.

What are the advantages of a manual 3-in-1 machine over separate machines?
It reduces space usage, lowers investment cost, simplifies operation, and improves workflow efficiency for small workshops.
