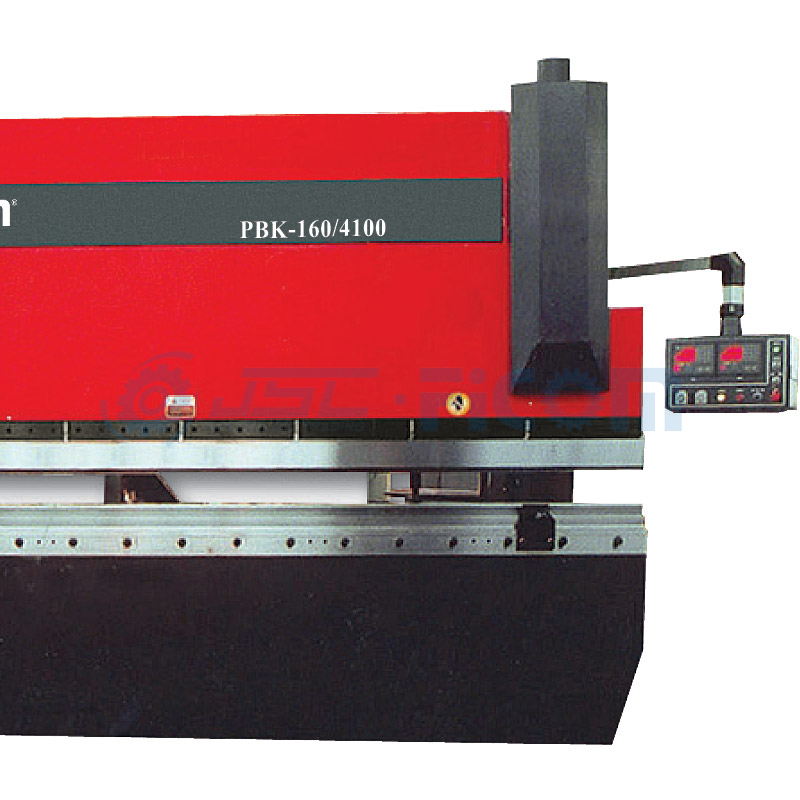

2-PBK Series Tandem Economic Type CNC Hydraulic Press Brake

· It is composed of two set of series PBK same machines, and which are equipped with mechanical synchronizer for 2-sets of tandem.
· It is used for making king-size parts.
· Either of the two machines can be used solely.

Quantity:
  • 2-PBK
  • FICOM
Overview



2-PBK

2-PBK-160/4100

Technical Parameters
Model No.

nominal

force

(Kn)

length of

table

(mm)

distance

between

uprights

(mm)

throat

depth

(mm)

ram

stroke

(mm)

stroke

adjustment

(mm)

max.

opening

height

(mm)

strokes

(min-1)

main

motor

power

(Kw)

G.W.

(Kg)

outline dimensions

(L×W×H)

(mm)

2-PBK-100/3200 2×1000 2×3200 2550 320 130 100 390 ≥10 7.5 2×8200 6400×1480×2650
2-PBK-100/4000 2×1000 2×4000 3350 320 130 100 390 ≥10 7.5 2×9300 8000×1480×2650
2-PBK-160/4000 2×1600 2×4000 3140 320 200 150 440 ≥6 11 2×12600 8000×1780×2570
2-PBK-250/3200 2×2500 2×3200 2540 400 250 180 500 ≥3 18.5 2×13800 6400×1890×2815
2-PBK-250/4200 2×2500 2×4200 3140 400 250 180 500 ≥3 18.5 2×16200 8400×18900×2815
2-PBK-250/5000 2×2500 2×5000 4000 400 250 180 500 ≥3 18.5 2×19800 10000×1890×2815
2-PBK-250/6000 2×2500 2×6000 5000 400 250 180 500 ≥3 18.5 2×25000 12000×1890×2815
2-PBK-300/5000 2×3000
2×5000 3900 400 250 180 535 ≥3 22 2×28000 10000×1950×3115
2-PBK-300/6000 2×3000 2×6000 4900 400 250 180 535 ≥3 22 2×29200 12000×1950×(3015+300)
2-PBK-400/6000
2×4000 2×6000 5000 450 300 220 630 ≥2.5 30 2×46000 12000×3000×(3660+1100)
2-PBK-500/6000
2×5000 2×6000 5050 450 300 220 650 ≥2.5 37 2×47500 12000×3200×(3660+1100)
