· Hardened and ground gears in the headstock.
· Super voice frequency heated bedway.
· With 2 precision D degree taper roller bearings on the spindle.
· Integrated deluxe cast iron stand.
· Three points support for spindle.

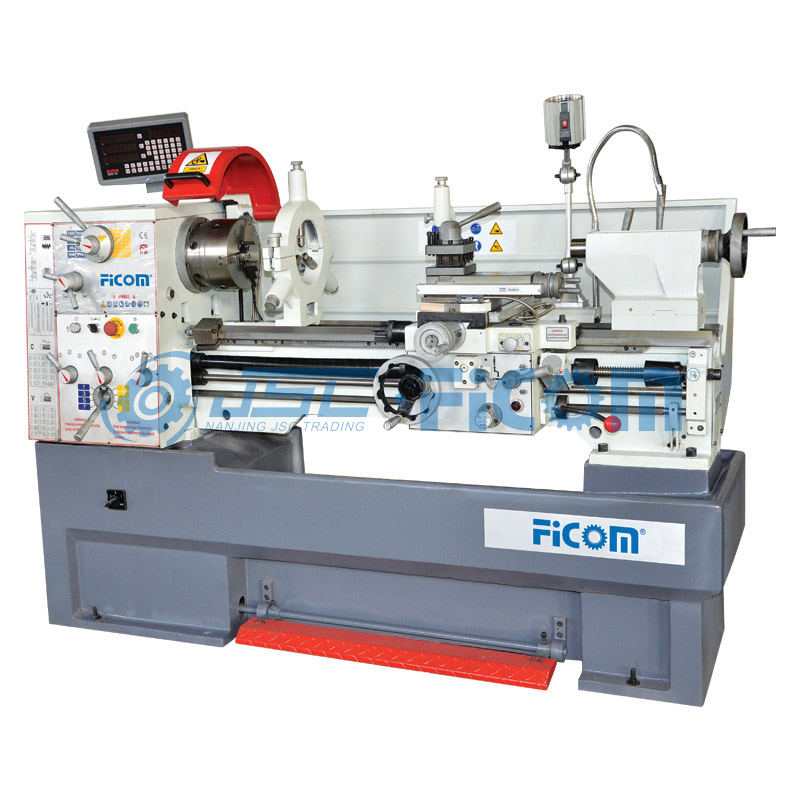

| Model No. | 1640GH/1660GH |
| distance between centers | 1000mm/1500mm |
| swing over bed | 410mm |
| swing over cross slide | 255mm |
| taper of spindle bore | MT6 |
| spindle nose | φ52mm |
| step of spindle speeds | 16 |
| range of spindle speeds | 45-1800rpm |
| range of longitudinal feeds | 0.05-1.7mm/r |
| range of inch threads | 2-72T.P.I |
| range of metric threads | 0.2-14mm |
| tailstock quill travel | 120mm |
| taper of tailstock quill | MT4 |
| dia of tailstock sleeve | 50mm |
| main motor | 3.3/2.8 or 4.5/3Kw |
| packing size | 2060/2560×910×1640mm |
| N.W./G.W. | 1550/1800, 1700/1950Kg |
3 jaw chuck and adapter | 4 jaw chuck and adapter | face plate | steady rest |
| follow rest | oil gun | thread chasing dial | operation manual |
| one set of wrenches | 2 dead centers | sleeve | foot brake |
| coolant pump | halogen lamp | splash guard | one piece iron casting stand |
| micro carriage stop |
quick change tool post | driving plate | taper turning attachment | digital readout |
| Nr 12 standard for Brazil |
