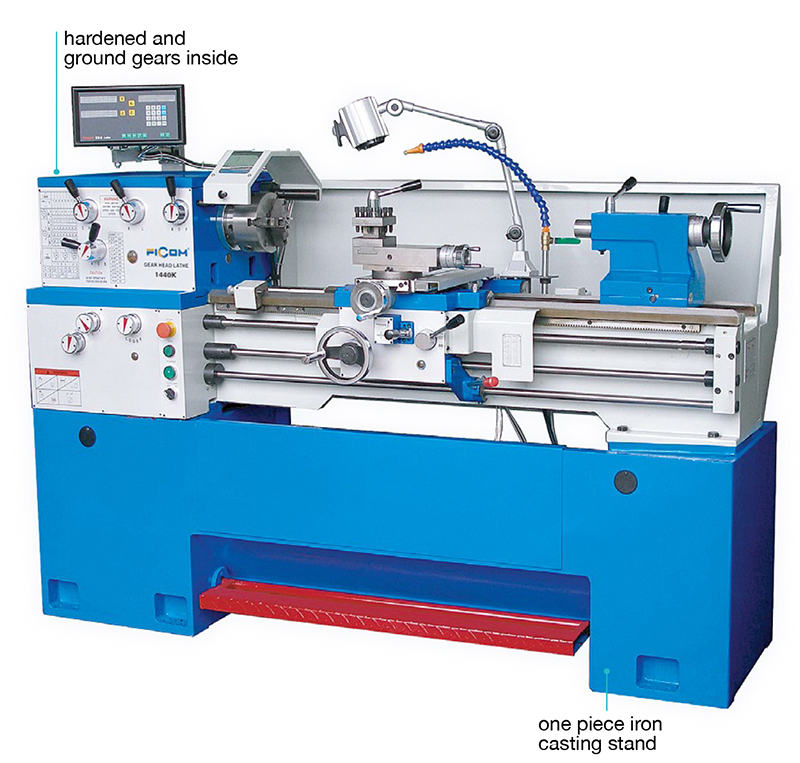

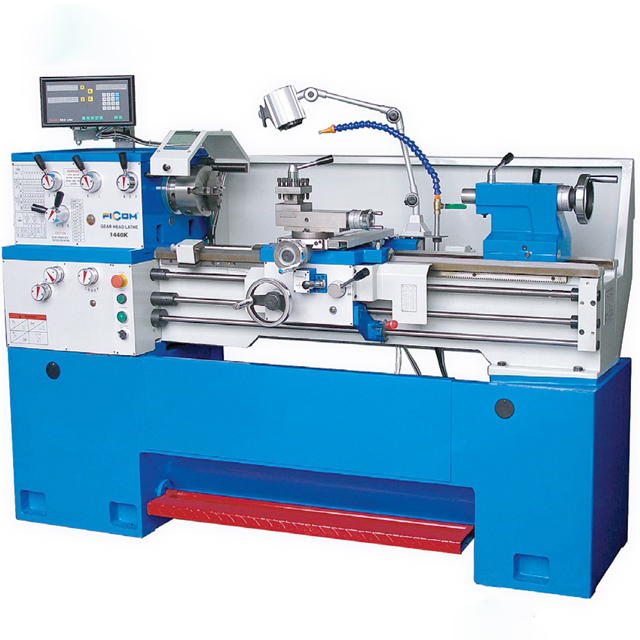

1440K
FICOM
· Induction hardened,precision ground V-way bed.
· D1-4 spindle is supported by high quality tapered roller bearing.
· 12 steps of spindle speeds are available.
· High precision directly mounting chuck.
· Gap bed section provides for larger diameter work.
· Gearbox has large feed and threading functions.
· Carriage mounted spindle control lever.
· Adjustable gibs for slideways.
· Automatic feed and threading are fully interlocked.
· Tailstock may be offset for turning tapers.
· Super width bedway.
· Equipped with emergency stop button.
| Model No. | 1440K/1460K |
| distance between centers | 1000/1500mm |
| swing over bed | 356mm |
| swing over gap | 508mm |
| swing over cross slide | 210mm |
| bed width | 260mm |
| taper of spindle bore | MT5 |
| spindle nose | D1-4 |
| spindle bore | 40mm |
| step of spindle speeds | 12 |
| range of spindle speeds | 40-1800rpm |
| range of cross feeds | 0.024-0.359mm/r |
| range of longitudinal feeds | 0.043-0.653mm/r |
| range of inch threads | 4-56T.P.I |
| range of metric threads | 0.4-7mm |
| top slide travel | 92mm |
| cross slide travel | 185mm |
| tailstock quill travel | 120mm |
| taper of tailstock quill | MT3 |
| motor | 2.4Kw |
| packing size | 1990/2490×760×1450mm |
| N.W. | 996/1100Kg |
3 jaws & 4 jaws chuck | face plate | steady rest | follow rest |
| halogen work lamp | coolant system | foot brake | toolbox & tools |
| micro carriage stop | one piece casting stand |
quick change tool post | turning tools | taper turning attachment | digital readout |
| collet attachment | leadscrew cover |
· Induction hardened,precision ground V-way bed.
· D1-4 spindle is supported by high quality tapered roller bearing.
· 12 steps of spindle speeds are available.
· High precision directly mounting chuck.
· Gap bed section provides for larger diameter work.
· Gearbox has large feed and threading functions.
· Carriage mounted spindle control lever.
· Adjustable gibs for slideways.
· Automatic feed and threading are fully interlocked.
· Tailstock may be offset for turning tapers.
· Super width bedway.
· Equipped with emergency stop button.
| Model No. | 1440K/1460K |
| distance between centers | 1000/1500mm |
| swing over bed | 356mm |
| swing over gap | 508mm |
| swing over cross slide | 210mm |
| bed width | 260mm |
| taper of spindle bore | MT5 |
| spindle nose | D1-4 |
| spindle bore | 40mm |
| step of spindle speeds | 12 |
| range of spindle speeds | 40-1800rpm |
| range of cross feeds | 0.024-0.359mm/r |
| range of longitudinal feeds | 0.043-0.653mm/r |
| range of inch threads | 4-56T.P.I |
| range of metric threads | 0.4-7mm |
| top slide travel | 92mm |
| cross slide travel | 185mm |
| tailstock quill travel | 120mm |
| taper of tailstock quill | MT3 |
| motor | 2.4Kw |
| packing size | 1990/2490×760×1450mm |
| N.W. | 996/1100Kg |
3 jaws & 4 jaws chuck | face plate | steady rest | follow rest |
| halogen work lamp | coolant system | foot brake | toolbox & tools |
| micro carriage stop | one piece casting stand |
quick change tool post | turning tools | taper turning attachment | digital readout |
| collet attachment | leadscrew cover |
