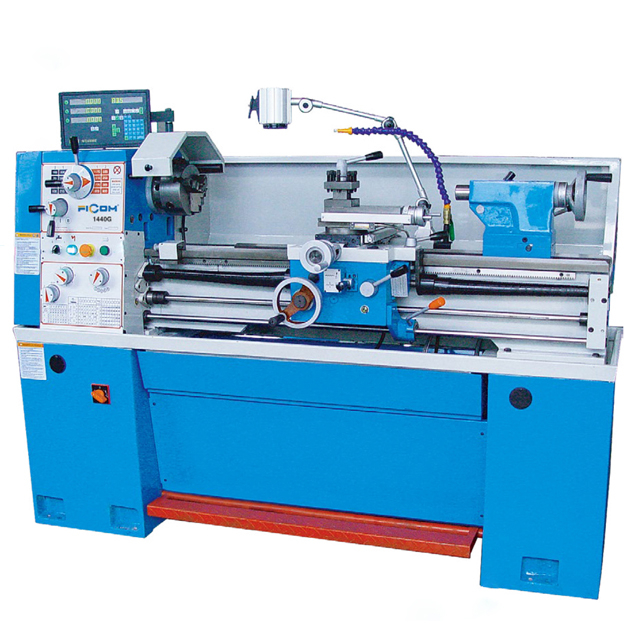

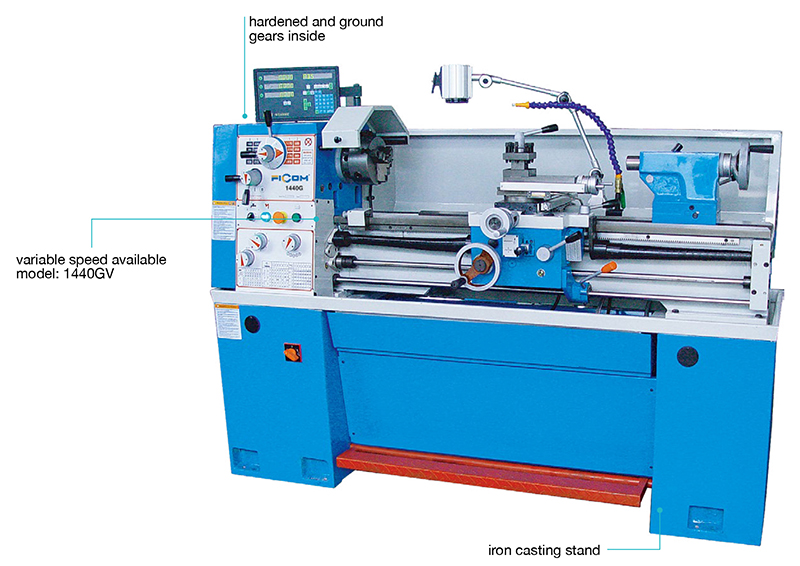

1440G
FICOM
Model No. | 1440G |
| distance between centers | 1000mm |
| swing over bed | 356mm |
| swing over gap | 540mm |
| swing over cross slide | 215mm |
| taper of spindle bore | MT5 |
| spindle nose | D1-4 |
| spindle bore | 38mm |
| step of spindle speeds | 16 |
| range of spindle speeds | 45-1800rpm |
| range of cross feeds | 0.015-0.220mm/r |
| range of longitudinal feeds | 0.043-0.653mm/r |
| range of inch threads | 2-72T.P.I |
| range of metric threads | 0.2-14mm |
| top slide travel | 92mm |
| cross slide travel | 185mm |
| carriage travel | 945mm |
| travel of tailstorck quill | 120mm |
| taper of tailstock quill | MT3 |
| motor | 1.5-2.2Kw |
| packing size | 1920×760×1450mm |
| N.W. | 800Kg |
3 jaws & 4 jaws chuck | face plate | steady/follow rest | iron casting stand |
| halogen work lamp | coolant system | foot brake | toolbox & tools |
| micro carriage stop |
quick change tool post | turning tools | taper turning attachment | digital readout |
| collet attachment | leadscrew cover | chuck cover |
